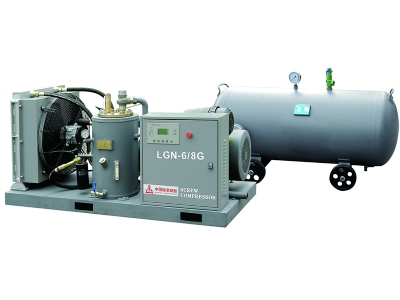

Features of the Screw Air Compressors (LGN mining series):
It has a better price-performance ratio and provides greater utility
This generation of screw air compressors is safe and reliable for mining work
These screw air compressors are specially designed to run at a low speed with a big rotor. With a leading design in the global market, this product ensures premium performance throughout.
Simply and tightly structured, the product is externally equipped with a horizontal air tank for easy installation. It is especially suitable for work sites that have restrictive height and width requirements.
A rational air injection control system
The permanently open intake valve can create pressure instantly, ensuring the lubrication of the compressor.
Reliable minimum pressure valve and the electromagnetic valve
By adopting cyclone separation, the unit has extremely good coarse separation, ensuring a low level of oil consumption.
User friendly human-machine interface display and control system
Convenient and simple to operate
All operating conditions are understood with a quick glance
It can work for 24 hours without the presence of an operator
When an anomaly appears, it will alert operators to perform maintenance or inspection and repair.
Technical Data of Screw Air Compressors (LGN mining series)
Model | LGN-6.2/8G | LGN-10/8G |
Rated working pressure (MPa) | 0.8 | 0.8 |
Displacement (m3/min) | 6.2 | 10 |
Rated engine power (kW) | 37 | 55 |
Dimensions (mm) | 1,740×850×920 | 2,000×990×1,050 |
Unit weight (kg) | 800 | 1,220 |
