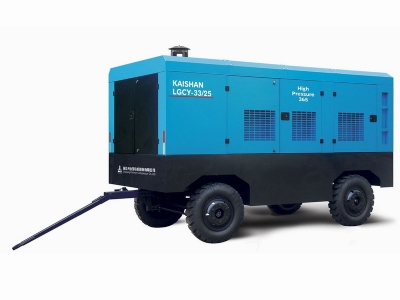

Kaishan’s Screw Air Compressors (High pressure portable series) helps save oil consumption by 100 L per day.
Three-level air filtration system
Three-level oil and air separation system
Lubricant filter with a precision of 10 μ
Highly efficient refrigeration system
Axial flow valve
Fully enclosed chassis and soundproof enclosure
A single hanging ring on top is easy for loading and unloading purposes
Heavy-duty portable chassis
Microcomputer-controlled interface
Special lubricant for air compressors
Patented SKY2 Compressors
Designed with a maximum pressure of 40 bar
Rotary: The SKY 2 Screw Engine is a patented rotary with the highest efficiency. Its high pressure ensures its large displacement.
Two-stage compression: its flexible design, which is a world-class patented invention, is compatible to poppet valves.
With the heavy-duty SKF bearing and the direct drive in place, it provides noiseless gearwheels.
With its optimal structure, it provides the most reliable performance.
With a switch design for dual working conditions, users may choose the working conditions of 33 m3 at a pressure of 2.5 MPa, or the working conditions of 25 m3 at a pressure of 3.5 MPa. The switch can be done easily and quickly.
Heavy-duty electric diesel injection engine
Variable fuel injection system: direct fuel injection of high pressure common rail.
It can be equipped with heavy-duty electric diesel injection engines, including Cummins and Yuchai. Based on the loading conditions, oil injection can be electronically and precisely controlled, thus ensuring the best combustion state during the entire operation of an engine. This product features combustion that is more economical with better reliability and stronger dynamic performance.
Standard configuration
Patented SKY 2-40 Air Compressors
Heavy-duty electric diesel injection engine
Compressor controller
Soundproof enclosure
Ecofriendly and fully-enclosed chassis
Heavy-duty air filter
High-capacity fuel tank
Selective configuration
Air compressors with dual working conditions
Diesel engine
Aftercooler
Air and water separation and drain valve
Fuel heating system
Remote control system
Kaishan’s Specifications for Two-stage Screw Air Compressors (High pressure diesel power series)
Model | Diesel engine power HP | Displacement (m3/min) | Discharge pressure (bar) | Dimensions (mm) | Remarks |
LGCY-26/25 | Cummins’ QSZ13-C550, 550 HP, or Y&C Engine | 26 | 25 | 4,700×2,100×2,500 |
|
LGCY-21/35 | 21 | 35 | 4,700×2,100×2,500 |
| |
LGCY-26/25（21/35） | 26（21） | 25（35） | 4,700×2,100×2,500 | Double pressure | |
LGCY-33/25 | Cummins’ QSZ13-C550, 550 HP, or Y&C Engine | 33 | 25 | 4,700×2,100×2,850 |
|
LGCY-26/35 | 26 | 35 | 4,700×2,100×2,850 |
| |
LGCY-33/25（26/35） | 33(26) | 25(35) | 4,700×2,100×2,850 | Double pressure | |
LGCY-39/25 | Cummins KTA19-P630 (Chongqing), 630HP, or Caterpillar’s C-18 ACERT, 630HP | 39 | 25 | 4,700×2,100×2,850 |
|
LGCY-33/35 | 33 | 35 | 4,700×2,100×2,850 |
| |
LGCY-39/25(33/35) | 39(33) | 25(35) | 4,700×2,100×2,850 | Double pressure |
