North American Research and DevelopmentCenter: SKY Low-noise Compressors
Heavy-duty design
With a direct drive in place, it provides noiseless gearwheels
Low-speed centrifugal fan and VFD oil cooler
Air silently enters the shell and the air compressor

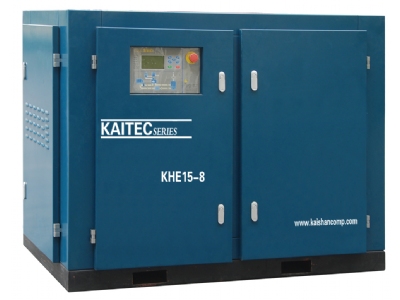

The Kaitec series reaches international first-rate standards with its low-noise feature
Latest generation of screw rotors (High-frequency SKY series)
Low-speed compressors are equipped with large direct-drive rotors
High efficiency, low noise, less vibration, and great reliability
The triple drive design adopts a cylindrical roller and tapered roller bearings, ensuring such bearings last more than 100,000 hours
High-precision rotors guarantee performance and reliability
Ultra-low noise
With a power of 132 kW, the Screw Air Compressors (Kaitec series) maintain a noise level as low as 73 dB, achieving international first-rate standards for low noise.
Reaching international first-rate standards with low-noise
As the heart of screw air compressors, SKY compressors enjoy a five-year warranty.
Two (2) to sixteen (16) compressors can be under centralized control, lowering systemic pressure and energy consumption. The chances of leaking compressed air can also be minimized to maintain pressure stability.
A list of product parameters is set out as below:
Model KHE15 KHE18 KHE22 KHE30 KHE37 Displacement/discharge pressure (m3/min/MPa) 3.13/0.7 3.63/0.7 5.01/0.7 6.35/0.7 2.50/0.8 3.10/0.8 3.58/0.8 4.90/0.8 6.30/0.8 2.2/1.0 2.79/1.0 3.03/1.0 4.05/1.0 5.64/1.0 2.25/1.3 2.77/1.3 3.52/1.3 4.01/1.3 Power (kW) 15 18.5 22 30 37 Noise level (db) 67 67 67 68 69 Length (mm) 1,450 1,550 1,750 Width (mm) 890 930 1,010 Height (mm) 1,073 1,140 1,288
